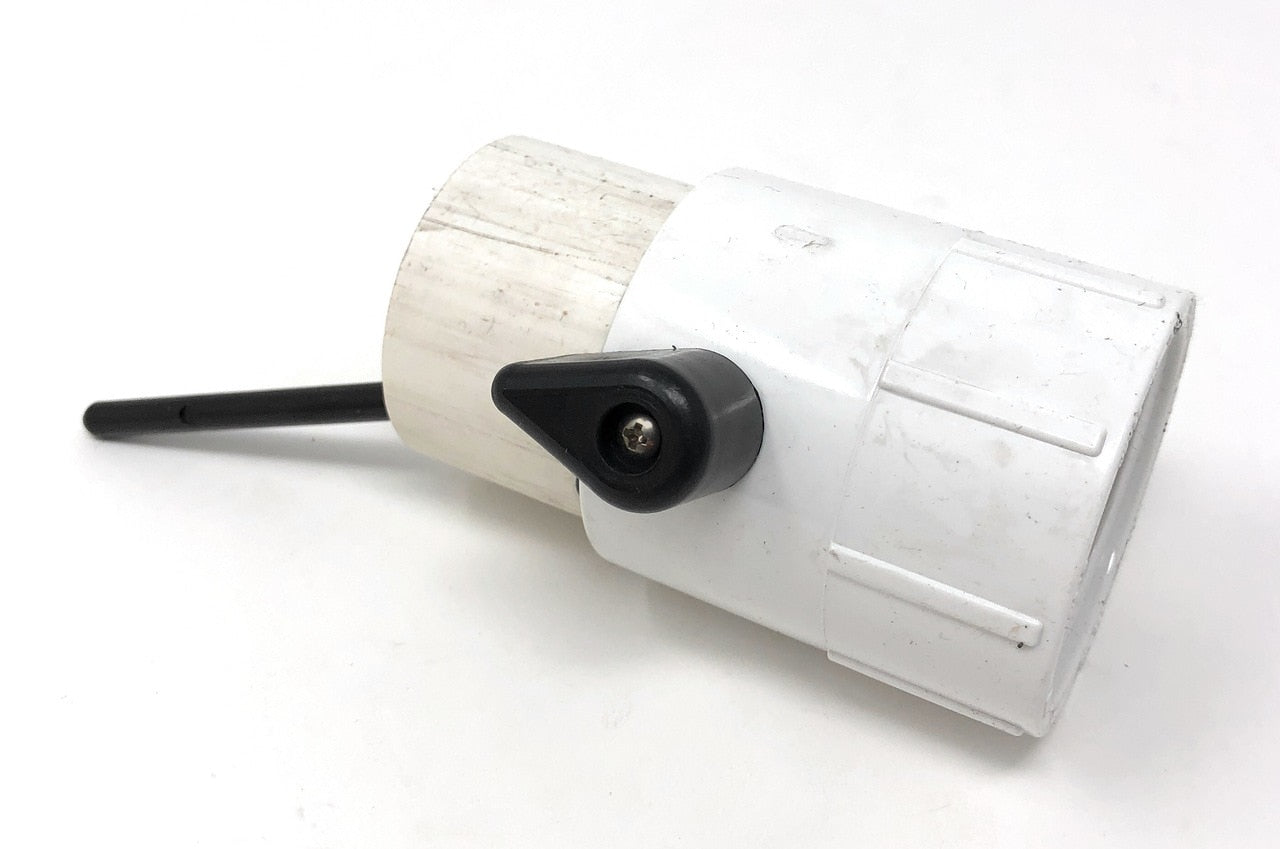

Top Feed Valve QuikStop Assembly – Pentair In-Floor(A&A) | 230033 Affordable Online

A&A Manufacturing is now Pentair In-Floor Cleaning & Circulation!

Old SKU – 522802

The Pentair In-Floor(A&A) QuickStop Assembly is designed to be plumbed directly above the Top-Feed Upper Housing. Compatible with ALL Pentair In-Floor(A&A) Top-Feed Valve Assemblies. This assembly will enable the ability to pause the gear system mid-cycle.

The QuickStop is 1.5″ threaded on the top side and 1.5″ slip on the bottom. When installed, the threaded side should be on top. Do not use any Teflon tape to seal the threads. Instead, use a “pipe dope” such as JointStik.

Pentair In-Floor(A&A) QuikStop for 5 and 6 Port Top-Feed Valves. It is used to repair magnaSweep and QuikClean Cleaning Systems. This kit comes with an impeller, gear plate, center shaft, o-ring, cam, and 2 anti-friction washers. Only use industry-standard Pool Heavy Gray glue on the valve top to ensure a water-tight seal.
